IO LAB ORTHOTICS
With the largest shoe selection, best quality devices and competitive pricing.
IO Lab is the clear choice of today's practitioner.
INTERACTIVE RX FORM
Our prescription builder was designed to aid practitioners in assembling the right pieces for the desired treatment direction. Simply open up the builder and the step-by-step process will walk you through the construction of your patient’s new orthotics

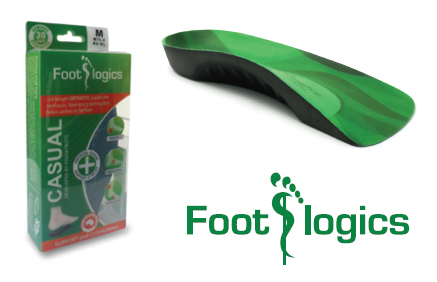

Footlogics Casual
The Footlogics Casual orthotic is made of a medium-density EVA to provide support and re-alignment for mild over-pronators, Plantar Fasciitis sufferers etc. The 3/4 length shape means the orthotic can be used in ladies slip-on shoes, also mens loafers or business shoes with a pointy toe box. The insole can also be used in flat sandals (we recommend Velcropads to keep the insoles in place).
Footlogics Comfort
Footlogics Comfort is an orthotic for ‘general use’. It features a generous arch support and deep heel cup. This full-length EVA insole can be heat-molded if required and customised with additions such rearfoot wedges, heel lifts, met domes etc. Now also available in XXL.
ORTHOTIC PRODUCTS
A proven company operating since 2006. We are relied on daily for Orthotic products, footwear and cutting edge inventory solutions by many of the leading laboratories, and clinical partners.
Accommodative

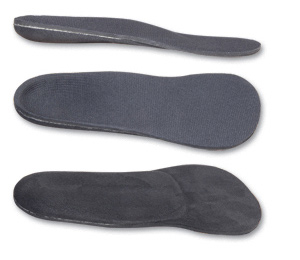

SHOCK LITE
Materials
1/8" Polypropylene shell, sulcus length ETC top cover, and Jsuede® bottom cover.
Posting
Intrinsic forefoot, integrated rearfoot post.
Accommodative

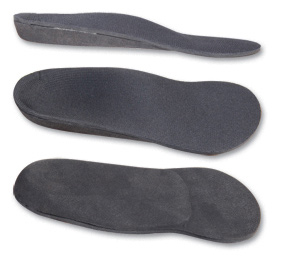

SHOCK PLUS
Materials
1/8" Polypropylene shell, sulcus length ETC top cover, Jsuede® bottom cover, with soft or firm arch reinforcement.
Posting
Intrinsic forefoot, extrinsic rearfoot post.
Diabetic

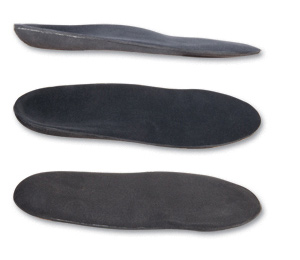

SOLE REMEDY
Materials
Sadmerc approved thermoformed plastazote and eva shell, full length.
Posting
Intrinsic forefoot, integrated rearfoot post.
Diabetic

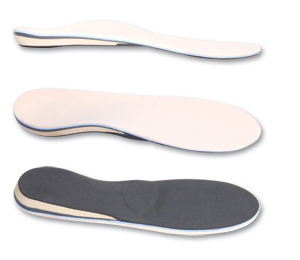

SOLE REMEDY PLUS
Materials
1mm Carbon Flex shell with 1/8” plastazote + 1/16” poron top cover and 1/4” poron arch fill.
Posting
Intrinsic forefoot, extrinsic rearfoot post.
Functional

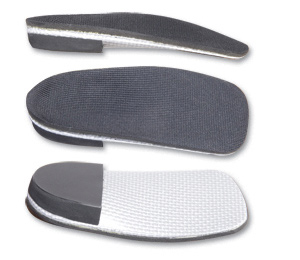

GUARDIAN
Materials
TL-SILVER® Rigid shell with meta length vinyl top cover.
Posting
Intrinsic forefoot, extrinsic
Functional

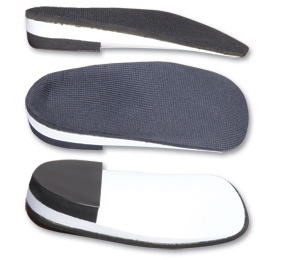

PROTECTOR
Materials
Polypropylene shell with meta length vinyl top cover.
Posting
Intrinsic forefoot, extrinsic crepe rearfoot post.
Dress

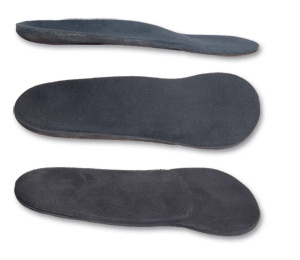

AVENUE FLAT
Materials
1/8" Polypropylene shell with hole in heel to sit lower in shoe, sulcus length vinyl top cover with Jsuede® bottom cover.
Posting
Intrinsic forefoot posting with no rearfoot posting.
Dress

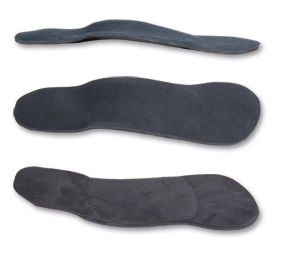

AVENUE PUMP
Materials
TL-SILVER® Semi-Rigid shell with flexible heel cushion (no shell in heel) sulcus length vinyl top cover with Jsuede® bottom cover.
Posting
Intrinsic forefoot posting and flexible heel.
Athletic

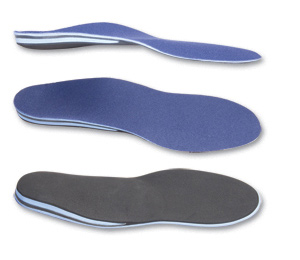

SOFT SPORT
Materials
2 mm Carbon Flex® shell with full length ETC top cover, 1/8” poron arch fill with 1mm Nyplex underlay.
Posting
Intrinsic forefoot, integrated rearfoot post.
Athletic

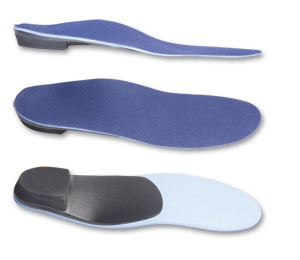

CONTROL SPORT
Materials
2 mm Carbon Flex® shell with full length ETC top cover.
Posting
Intrinsic forefoot and dual density extrinsic crepe rearfoot post: to provide shock absorption at heel strike and rearfoot motion control for STJ pronation.
BRACES
Fixed stirrup orthosis that allows post injury immobilization and return to function in a single brace.
ARIZONA MEZZO™
Suggested L Codes: L1907, L2330
The patented Arizona Mezzo™ is the ‘happy medium’ between a UCBL and the standard Arizona Brace®. The custom-fabricated Arizona Mezzo™ provides support for a variety of midfoot and hindfoot conditions requiring superior longitudinal arch support. Its low-profile design and soft leather lining mean easy shoe fit, exceptional comfort and greater patient compliance. Partial Foot Arizona Mezzo™ also available.
FEATURES & OPTIONS
- Low-profile design
- Can be worn with practically any shoe - even sandals!
- Custom-molded, intimate fit
- Made from Orthopedic-grade, Chromium-tanned leather and thermoplastic
CLINICAL INDICATIONS
- Posterior Tibial Tendon Dysfunction (PTTD) Stages 1 & 2
- Extreme flatfoot
- Sinus Tarsi Syndrome
- Hypotonia/low tone
- Peroneal tendonitis
- Plantar fasciitis
- Osteoarthritis of the subtalar and midtarsal joints
THERMOPLASTIC AFO - ARTICULATED
Suggested L Codes: L1970
The Articulated Thermoplastic AFO design helps manage abnormal motion or severe pronation in the transverse and frontal planes. It stabilizes the ankle area while reducing forefoot abduction or adduction.
FEATURES
- Thermoplastic shell
- Available with Free Motion or Dorsi-Assist ankle joint
- Available with varus or valgus correction
- Metatarsal, sulcus, or full length footplate
- Optional 1/8” medical-grade foam padding
- Closure with tibial pad
CLINICAL INDICATIONS
- Mild Posterior Tibial Tendon Dysfunction (PTTD)
- Mild degenerative arthritis
- Lateral and medial instability of subtalar joint
- Foot drop
- Severe pronation
- Trauma
THERMOPLASTIC AFO
Suggested L Codes: L1960
This AFO supports, assists and controls the joints in the foot and ankle. This device provides optimal support utilizing thinner plastic and reduces distal length of the footplate. Thermoplastic AFOs feature a custom-made design including the Posterior Leaf Spring (PLS), Semi-Solid or Solid Ankle.
FEATURES
- Thermoplastic shell
- Select from three profile designs
- Metatarsal, sulcus, or full length footplate
- Closure with tibial pad
CLINICAL INDICATIONS
- Foot drop
- Weak or absent plantar flexors and/or dorsiflexors
- Severe degenerative arthritis
- Lateral and medial instability of subtalar joint
- Trauma
SPLIT UPRIGHT
Suggested L Codes: L1970, L2820
Help your patients control abnormal motion in the transverse and frontal planes with Arizona AFO’s Split Upright. The Split Upright features an integrated one-piece calf design and footplate. This three-point pressure control system provides maximum support.
FEATURES
- Custom-molded polypropylene metatarsal-length foot orthosis with 35mm heel cup attached to an integrated custom calf section
- Balanced biodynamic forefoot and heel system
- Removable medial and lateral soft interface pad system
- Fully adjustable closure system
- 100% custom-made
CLINICAL INDICATIONS
- Posterior Tibial Tendon Dysfunction (PTTD)
- Lateral & medial instability of subtalar joint
- Chronic ankle instability
- Severe pronation
- Sinus tarsi syndrome
- Trauma
ARIZONA BRACE®
Suggested L Codes: L1940, L2330, L2820
The Arizona Brace® is our original design and still remains our most popular for comfort and stability. The Arizona Brace® is prescribed to stabilize the ankle, talocalcaneal, midtarsal and subtalar joints. Often copied but never equaled, the Arizona Brace® is the only custom AFO proven in clinical trials to effectively treat Posterior Tibial Tendon Dysfunction (PTTD) as an alternative to surgery.
FEATURES
- Soft, comfortable molded leather inner shell lining
- Padded with 1/8” medical-grade foam
- Polypropylene-reinforced foot and ankle
- Metatarsal-length foot plate
- Custom anatomical reliefs
CLINICAL INDICATIONS
- PTTD (Posterior Tibial Tendon Dysfunction)
- Tibialis tendonitis (posterior or anterior)
- Severe pronation or pes planus
- Ankle arthritis or Degenerative Joint Disease (DJD)
- Charcot foot
- Chronic Achilles tendonitis
AVAILABLE COLORS

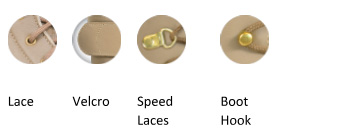

CLOSURE OPTIONS
AZ CROW WALKER™
Suggested L Codes: L4631
An excellent alternative to total casting for your diabetic foot care patients. The AZ CROW Walker™ minimizes the force going through the foot while the rocker bottom and custom-molded insert encourages healing. The Charcot Resistant Orthotic Walker (CROW) is a weight-relieving AFO.
FEATURES
- Thermoplastic shell
- Optional 1/8” medical-grade foam padding
ARIZONA OPTIMA BRACE
Suggested L Codes: L1970, L2820
The Arizona Optima Brace is a thermoplastic custom articulated ankle foot orthosis with anatomic ankle axis hinge placement providing unrestricted sagittal ankle motion. The leg uprights are aligned perpendicular to the foot plate and feature a fully adjustable closure system. The custom low profile design allows for easy shoe fit.
FEATURES
- Ankle Axis Hinge
- EVA Top Cover
- Removable Upright Pads
- Heel Cup - 35mm
- Top cover length - To mets
- Heel stabilizer
- Upright aligned perpendicular to the foot plate
SUPRA MALLEOLAR ORTHOSIS - SMO
Suggested L Codes: L1907, L3400
Our SMO supports patients with foot and ankle pathology difficulties that are not controlled with conventional foot orthoses. Made of a polypropylene shell for enhanced durability, a lower leg strap is also available.
FEATURES
- Thermoplastic shell
- Optional 1/8” medical grade foam padding
CLINICAL INDICATIONS
- Arthritic conditions
- Charcot foot
- Chronic ankle sprains
- Instability
- Posterior tibial weakness or rupture
- Low tone, hypotonic patient
MOORE BALANCE BRACE™ (MBB)
Suggested L Codes: L1940, L2330, L2820
The Moore Balance Brace™ (MBB) is the original balance brace and the only one clinically proven to reduce postural sway and increase postural stability*. The MBB is a custom-made AFO designed to reduce the risk and incidence of falls in the elderly and high risk populations.
The MBB is best utilized in conjunction with a comprehensive fall prevention protocol which may include strength training, certain environmental changes in the home, physical therapy and other related specialties.
The MBB is typically prescribed bilaterally.
FEATURES & OPTIONS
- Easy to reach and pull Velcro® straps
- Polypropylene shell providing lightweight, stable support around the foot and ankle
- Low-profile & open dorsal design allows for easy shoe fitting & increased compliance
- Heel stabilizing post maximizing balance & stability
- Lightweight, durable polyester cloth covering
- Custom ankle stabilization providing maximum somatosensory feedback
- Plastazote™ interface providing comfortable shock absorption to the heel, plantar surface & tongue
- Custom orthosis provides arch support and midfoot stability while allowing the forefoot & toes to be anchored for increased balance
CLINICAL INDICATIONS
- Difficulty walking and/or maintaining balance
- History of falls
- Vestibular disorder
- Chronic ankle Instability
- Arthritic ankle
- Stroke Imbalance/foot drop
- Diabetic peripheral neuropathy
AZ BREEZE™
Suggested L Codes: L1940, L2330, L2820
The AZ Breeze™ offers the same great features as the Arizona Brace® but is lightweight, hypo-allergenic and moisture wicking – it’s even machine washable! Covered with a synthetic material, it is indicated for patients with leather allergies or lifestyles and/or occupations prone to moisture.
The AZ Breeze™ material is available in all Arizona Brace® styles.
FEATURES & OPTIONS
- Lightweight, durable polyester covering
- Padded with 1/8” medical-grade foam
- Polypropylene shell
- Custom anatomical reliefs
CLINICAL INDICATIONS
- Posterior Tibial Tendon Dysfunction (PTTD)
- Talocalcaneal varus or valgus
- Tibialis tendonitis (posterior or anterior)
- Severe pronation or pes planus
- Ankle arthritis or Degenerative Joint Disease (DJD)
- Charcot foot
- Ankle, subtalar or midtarsal trauma
- Chronic Achilles tendonitis
